| Brand Name : | Garrida |
| Model Number : | GRxxJBD |
| Certification : | CE/ROSH |
| Price : | USD47.89/PCS |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 10000pcs |
| Delivery Time : | 25-30 days |

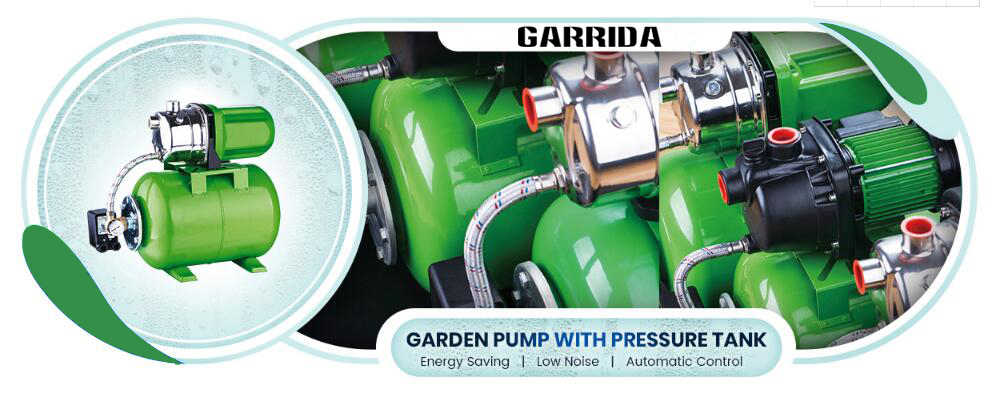

1.5HP Convertible Water Jet Pump for Household Water System
Operating Limits:
-Fluid temperature up to 35°C
-Maximum ambient temperature 40°C
Pump's construction:
-Pump body: Plastic or stainless steel
-Impeller: PP/stainless steel
-Motor shaft: 45# Steel or Stainless steel
-Mechanical seal: Ceramic and graphite
-Insulation class: B/F
-Protection Class: IPX4
Idea For:
- Water supply from rain barrels
- Pressure booster, irrigation system
- Installations/ apparatus industry, industrial applications
- Rain water utilisation, filter sytems, lowering of ground water
- WC flushing supply with washwater from wells or tanks
Pump's Application:
- The automatic booster systems consists of a water pump, a membrane tank, a pressure gauge and a pressure switch.
- Garden jet pump can be uses as a boost up household water pressure on clear water, such as gardening, water supply and washing. Stainless steel housing prevented rust and long lasting.
-These pumps should be installed in a covered area, protected against the weather.
-It's always advisable to install a foot valve or non-return valve on the suction opening.
Specification:
| Rated Power | 600W | 800W | 1000W | 1200W |
| V&Hz | 230V/50Hz | 230V/50Hz | 230V/50Hz | 230V/50Hz |
| Max. Flow | 2800L/H | 3000L/H | 3200L/H | 3500L/H |
| Max. Height | 35M | 40M | 44M | 46M |
| Max. Suction | 7M | 8M | 8M | 8M |
| Bar(min~max) | 1.2-3.0 | 1.2-3.0 | 1.2-3.0 | 1.2-3.0 |
| Certifications | ROHS/LVD/GS/CE/EMC | |||
| Dia. Of Pipe | 1" | 1" | 1" | 1" |
| Cable | H05RNF3G 1.0mm2x1.2m | H05RNF3G 1.0mm2x1.2m | H05RNF3G 1.0mm2x1.2m | H05RNF3G 1.0mm2x1.2m |
110V/60Hz is also available
|
|
